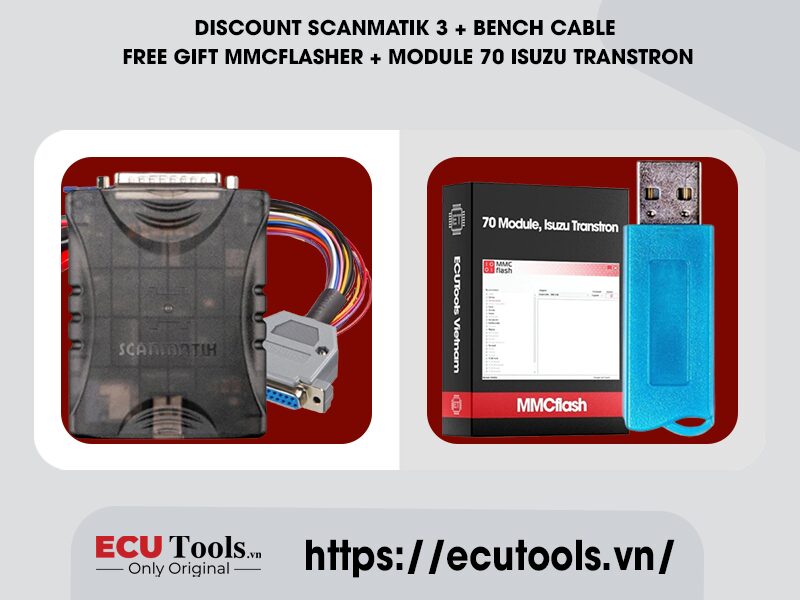

Tuning Starter Kit – Remap ECU Scanmatik 3 + Bench Cable + MMCFlash dongle + Module 70 Isuzu

Are you looking for a powerful, stable and comprehensive ECU/TCU diagnostic, reading and writing solution? The Scanmatik 3 + Bench Cable Combo is the ideal choice combined with valuable gifts: USB Dongle MMCFlash and Module 70 Isuzu Transtron.

Scanmatik 3 – Multi-function diagnostic & programming device

Supports multiple protocols (CAN, K-Line, J1850, ISO9141, PWM…) and is compatible with most engineering software such as:

• PCMFlash
• MMCFlash
• ChipLoader
• Techstream, Forscan, GDS2, ODIS
• OEM software and general diagnostic software.

Scanmatik 3 stands out thanks to:

• Scanmatik 3 supports protocols such as CAN, K-Line, J1850, J1708, J1939, DoIP, CAN FD and many other OBD-II protocols
• Supports J2534 connection standard that can be used with specialized diagnostic software for passenger cars such as Ford FDRS, Ford FJDS, Mazda MDARS, Toyota Techstream, Honda iHDS, Mercedes Xentry Passthru, JLR SDD, …
• Supports RP1210 connection standard that can be used with specialized diagnostic software for trucks and construction machines such as Cummins Insite, Isuzu G-IDSS, Detroit DDDL, Hino DX2, Volvo Techtool …
• Supports reading and writing control box programs via On Bench cable or via OBDII diagnostic jack conveniently.
• Compatible with software that supports reading and writing control box programs such as PCMFlash, MMCFlasher, Bitbox, M&D Flasher, Combiloader, …
• Connect to Scanmatik App on Android platform, allowing easy wireless diagnosis via Wifi using Smartphone.
• Connect to Scanmatik software on Windows platform, allowing easy wireless diagnosis via Wifi or wired via USB cable.
• Support full diagnosis of vehicle systems of some brands such as Hyundai, Kia, Mitsubishi, Daewoo, Chevrolet, VAZ, GAZ, BYD, Greatwall, Kamaz, …
• Provide simple and effective general engine diagnostic features via OBD-II.

Scanmatik Bench Cable

• Short circuit protection: The cable is integrated with a short circuit protection circuit, increasing the safety of the device.
• Power port: Using a 2.0 mm jack ensures a stable connection.
• Supports a maximum current of 5A: Meets the needs when used with ECUs mounted on heavy trucks and construction machines.
• Automatic power management: Built-in power management system and supports Boot and CNF1 signals, helping the reading/writing process to be stable and accurate.
• The Bench/Boot cable is equipped with 3 LEDs to show the operating status for the user. The green LED indicates the input power. The red LED indicates the output power to the ECU. Blue LED indicates Boot status.

Free gift

MMCFlash

• Software identification: Software identification
• Reading: Function of reading files from the control box
• Virtual reading of the file or of the lastest software update: Function of virtual reading
• Writing (update version or downgrade): Function of writing files to the control box
• Checksums and CVN correction: Check and correct file checksum errors
• Read DTC: Read errors
• Clear DTC: Clear errors

Module 70 – Isuzu Transtron

• Supported chips: SH7055, SH7058, SH7059, SH72533, SH72544
• Supported engines: 4HK1, 4JJ1, 6UZ1, 4JK1, 6HK1
• For boxes using SH7055 chip, it can only read via K-line. CANNOT WRITE.
• All boxes using SH7058/SH7059/SH72533/SH72544 chip – can read/write via K-line and CAN bus

Summary

The Scanmatik 3 + Bench Cable Combo is an indispensable tool in the auto service workshop. With the gift of MMCFlash and Module 70 Isuzu Transtron, you will have in your hands a comprehensive ECU diagnostic – programming solution, saving costs many times over.
