SIMK43 Pinout All About Standard Connection For Siemens ECU

What is SIMK43?

In the world of ECUs of Hyundai/Kia manufacturers, Siemens SIMK43 is not a new name, but always makes technicians look away when meeting. Used on many small Hyundai cars such as Getz, Accent, i10 or Kia Morning,ECU SIMK43Siemens series with Infineon MCU and CAN or K-Line communication.

Features of SIMK43:

• Small ECU, 3 jacks but quite thick pins
• Usually comes with 1.0L to 1.4L petrol engine
• Read/Write via Bench/Boot
• Files can be edited using PCMFlash, DFOX or BitBox

SIMK43 is not too difficult, butIf the pinout is wrong, the ECU is prone to hang or shock the device.. Therefore, understanding and looking upsimk43 pinoutbefore the operation is mandatory.

SIMK43 Pinout – Full ECU Pinout Diagram

When working with SIMK43, you often choose PCMFlash to read/write. Therefore, the keywordsimk43 pcmflash pinouthas become familiar on ECU groups.

Pinout information you need to know:

Note: Pin locations may vary depending on ECU housing. Use wiring diagrams from authorized or trusted sources.

Siemens SIMK43 Pinout On PCMFlash

Popular modules:

• PCMFlash module 53: Read/write via OBD or Bench
• PCMFlash module 71: Used when tuning protection is required.

After connecting the cables according to the wiring diagram, open PCMFlash, select:

• ECU Type: Siemens SIMK43
• Connection: Bench
• Actions: Read, Write, Erase…

File reading time: 20–30 seconds
Write file: Maximum 1 minute
Function: Read/write, checksum, erase, unlock tuning…

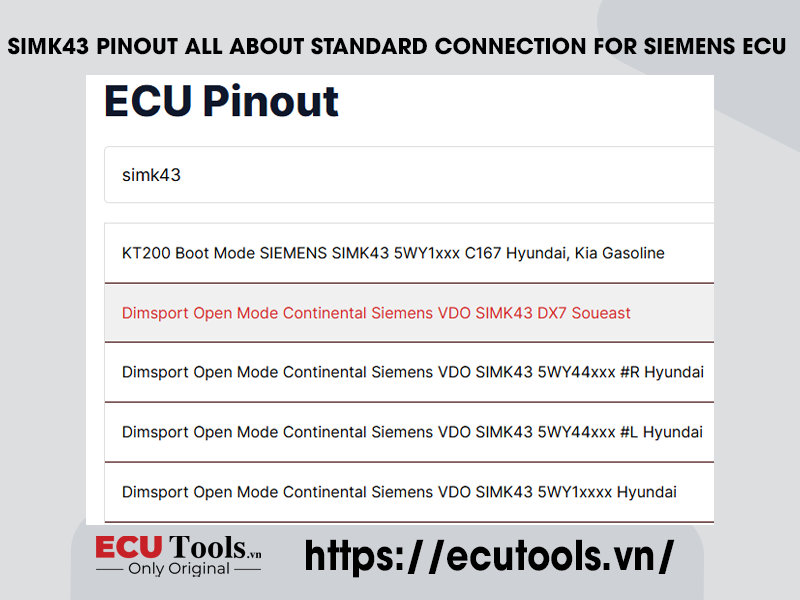

SIMK43 Pinout Lookup Source

• Website ECUTools.vn: Just type “simk43 pinout”
• PCMFlash Software: Help >> Wiring
• DHTAuto.com, VIETVehicle.com Forum
• Facebook groups specializing in ECU

Note when working with SIMK43:

1. Always backup the original filebefore tweaking
2. Use 12V stable power supply
3. Check BOOT and RESETprecision casting
4. Test the original file before flashing the modified file
5. Do not share pinout between SIMK43 and SIMK41, SIMK42(with difference)

Why is SIMK43 Pinout Important?

Just like if you hold the USB in the wrong direction, nothing will work. With the ECU being so sensitive, wrong pin connection not only leads to errors but can also damage the ECU and brick the device.

SIMK43 pinoutright time:

• Read fast, write well
• Avoid the risk of burning chips or hanging ECU
• Help you trust in your work
• Protect reading/writing devices (PCMFlash, Scanmatik…)

Important Keywords

• simk43 pinout
• siemens simk43 pinout
• simk43 pcmflash pinout

Conclude

SIMK43 is small, but “has a shell”. If you work with Hyundai i10, Getz, Accent – you will definitely encounter it. And when you do,nothing more important than pinout. Please look upsimk43 pinoutfrom accurate and complete sources, so that every reading and writing operation becomes fast, accurate and safe.
